Broken JRC Chair - aluminium welder in Wakefield area?

[Neil Kirk]

I have a 30 year old JRC Specialist chair which I am very attached to (no, nothing to do with superglue!).

It broke when a suporting metal strap under the seat parted from the main frame (yes its a bad design). It happened before maybe 15 years ago and I got someone in Barnet to weld it. From what I can recall it needed specialist welding because it is aluminium.

I am now in Leeds/Wakefield and it needs fixing again. Am I correct that it needs an aluminium welder and does anyone know of such a person within 20 miles of East Ardsley WF3 2EG?

Cheers



[Mike Thompson]

Hi Neil,
Try searching for metal fabricators in your area. Most will be just steel, but I bet if you ask one they will know of a local guy who does aluminium.



[Paul Whiteing]

Hi Neil

Is it the chair with the flat support under the front of the chair that is welded to the side tubes?

I fixed mine over 25 years ago using some 16swg aluminium straps that I screwed to the flat piece. I'm no engineer but with a hacksaw, a hammer and a drill it was an easy job

You can see the broken weld in the pictures



Has never let me down since, and far easier than finding a welder (and stronger too I'd say)



[Neil Kirk]

Hi Paul

That is the chair - I had forgotten we had the same chair.

That looks a very good solution. Where would I source the metal straps and screws from?

Thanks



[Paul Whiteing]

Hi Paul

That is the chair - I had forgotten we had the same chair.

That looks a very good solution. Where would I source the metal straps and screws from?

Thanks

I can send you screws, washers and nyloc nuts, but I don't know where you can get sheet alum alloy from.

I'll do some measurements (done, see below) and let you know the sizes of pieces you need, maybe someone can help?

You need 2 pieces each 6 inches long by 1.3/4 inches wide



[Richard Isaacs]

I’ll have a look in my stash see if I’ve got anything you can replicate Paul’s repair with.
What’s the diameter of the tube. If I find something I’ll pre form it for you. No promises mind. I might not have any



[Paul Whiteing]

I’ll have a look in my stash see if I’ve got anything you can replicate Paul’s repair with.
What’s the diameter of the tube. If I find something I’ll pre form it for you. No promises mind. I might not have any

20.5 mm o/d



[Paul Whiteing]

Thanks Richard, but I found material and will attempt to make kits for Neil - attempt as in 'ammer and bodge



[Richard Isaacs]

Thanks Richard, but I found material and will attempt to make kits for Neil - attempt as in 'ammer and bodge

Nice one Paul



[Paul Whiteing]

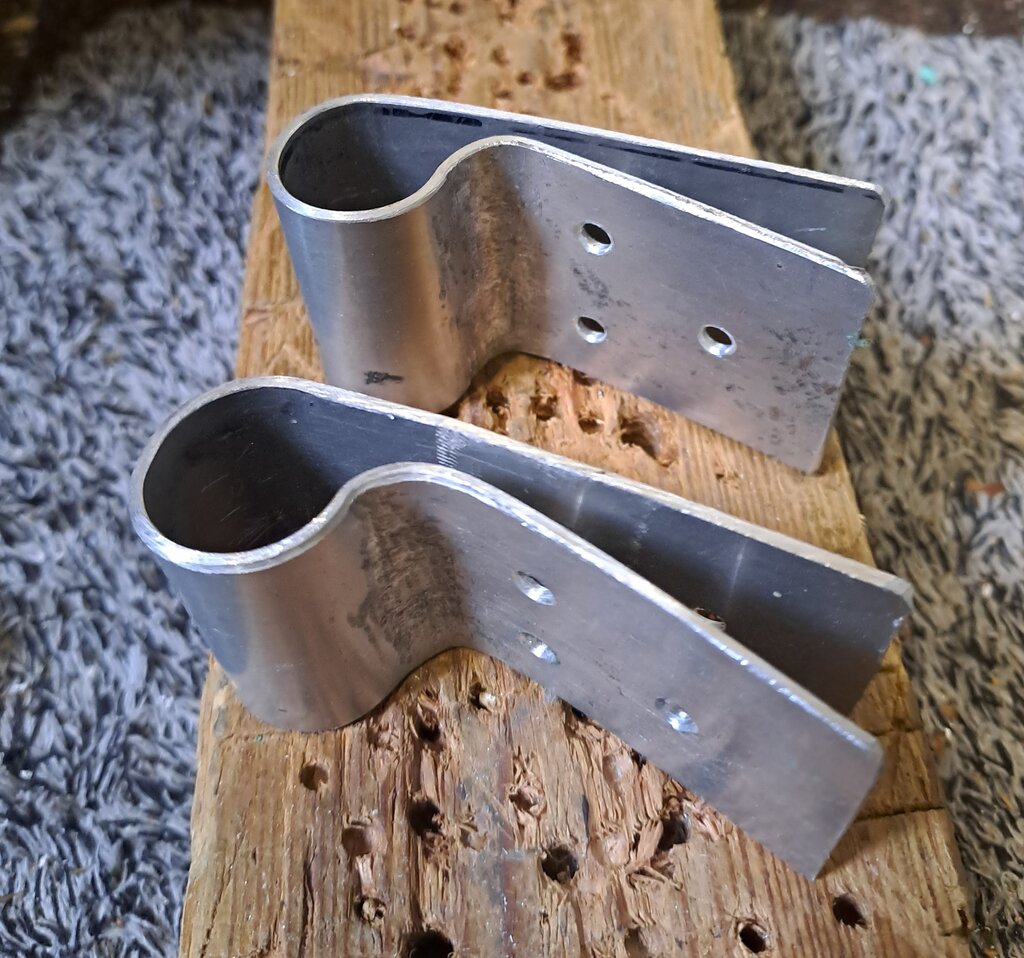

Sorted



[Richard Isaacs]

Sorted

View attachment 30793

Absolutely spot on and a great original repair idea in the first place.
Like you say that’s going to be stronger than the original or a new weld.



[Alan Rose]

@Paul Whiteing what a lovely chap you are
