8mm thread to 3/8 bsf adapter for landing net

Warren Mcquillan

Warren Mcquillan

Active Member
Can anyone link me up to buy an adapter that will change my newly bought telescopic landing net handle from China so it accepts the usual UK size net heads.. 3/8 bsf, I bought one from amazon but it appears 10mm is different to 3/8 bsf

Is this the landing net Mark Edwin uses? I am waiting for mine as well. And I also bought a 8mm to 10mm adaptor…although I do have a 8mm net, but it is too small for barbel…

M10 is a completely different thread with a pitch of 1.5mm it’s way too coarse. you need a 3/8 bsf 20TPI. I doubt you’ll find an adapter.

The good thing is an m8 thread is cut from a 6.8mm hole and a 3/8bsf thread is cut from an 8mm hole (there or there abouts)
So drill it out 8mm and cut a new thread 👍🏻

Last edited:
Richard Isaacs said:

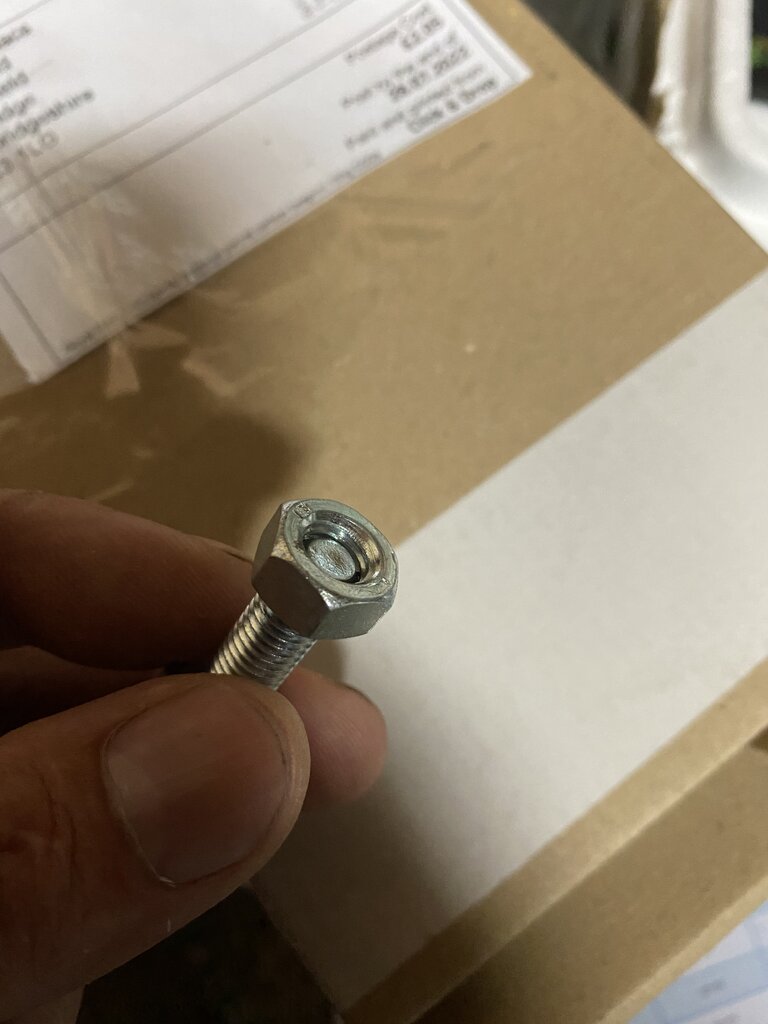

View attachment 20162M8 course metric nut.
View attachment 20163

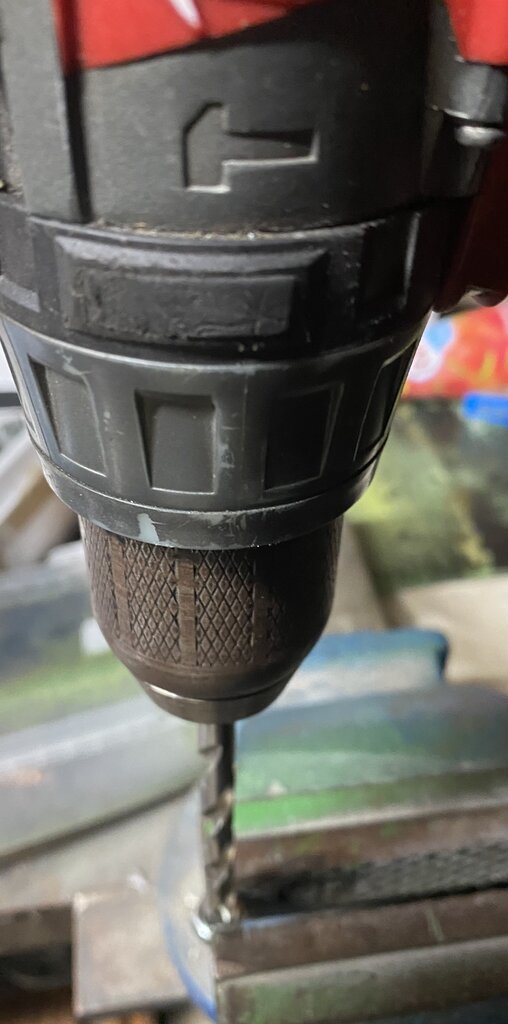

Straight in with an 8mm bit View attachment 20164should completely remove the threads

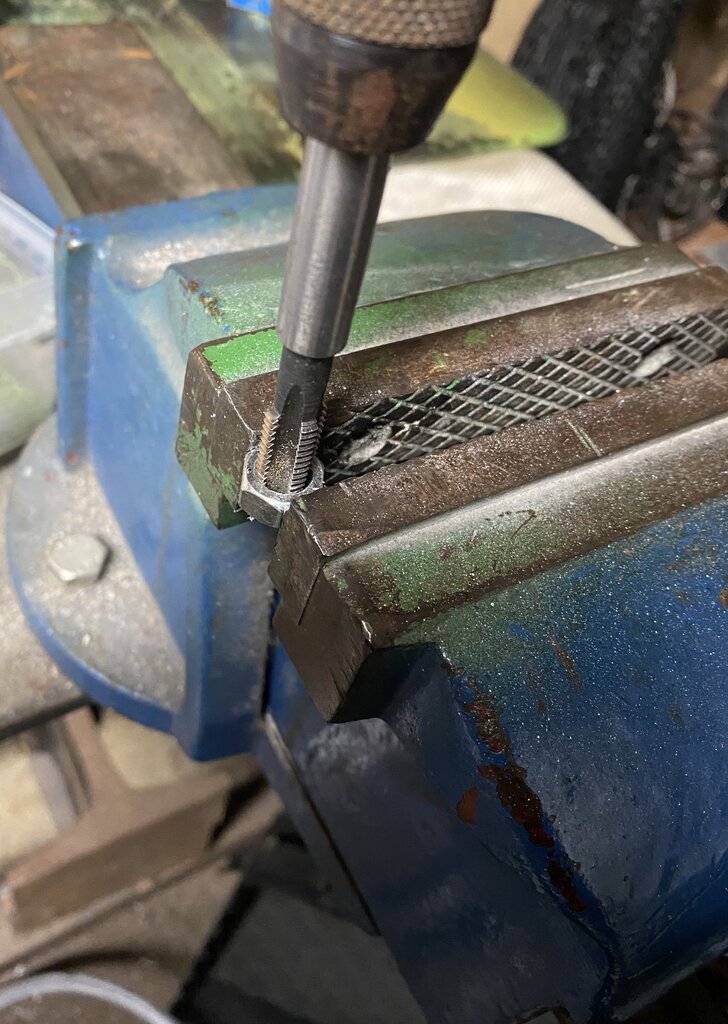

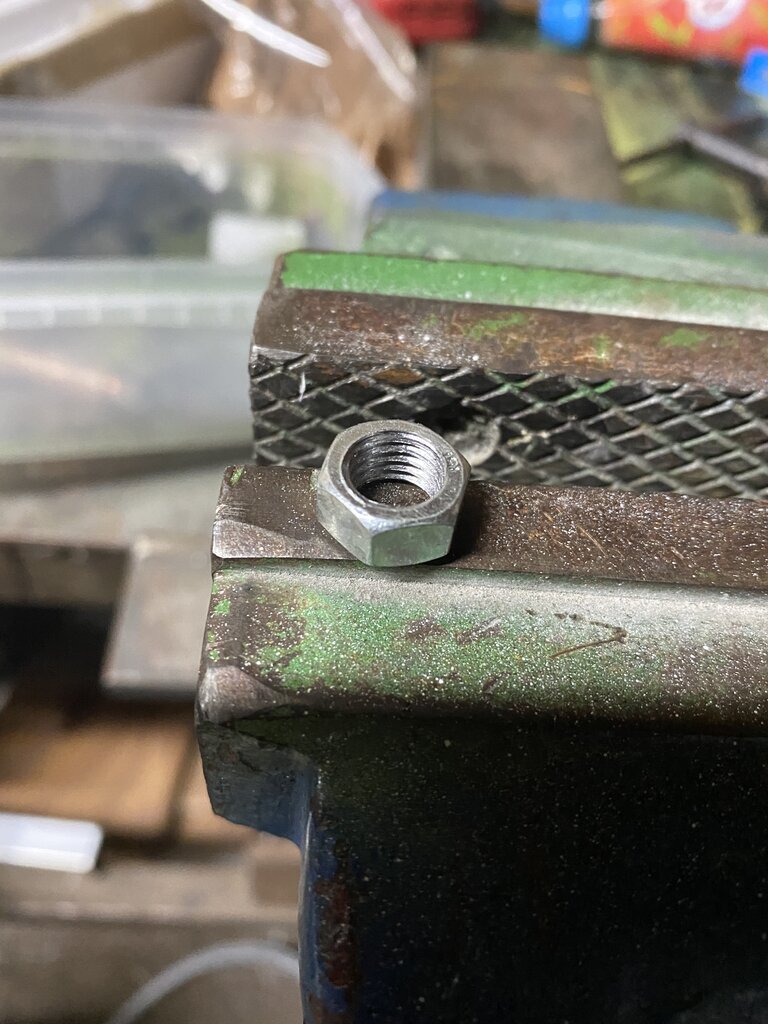

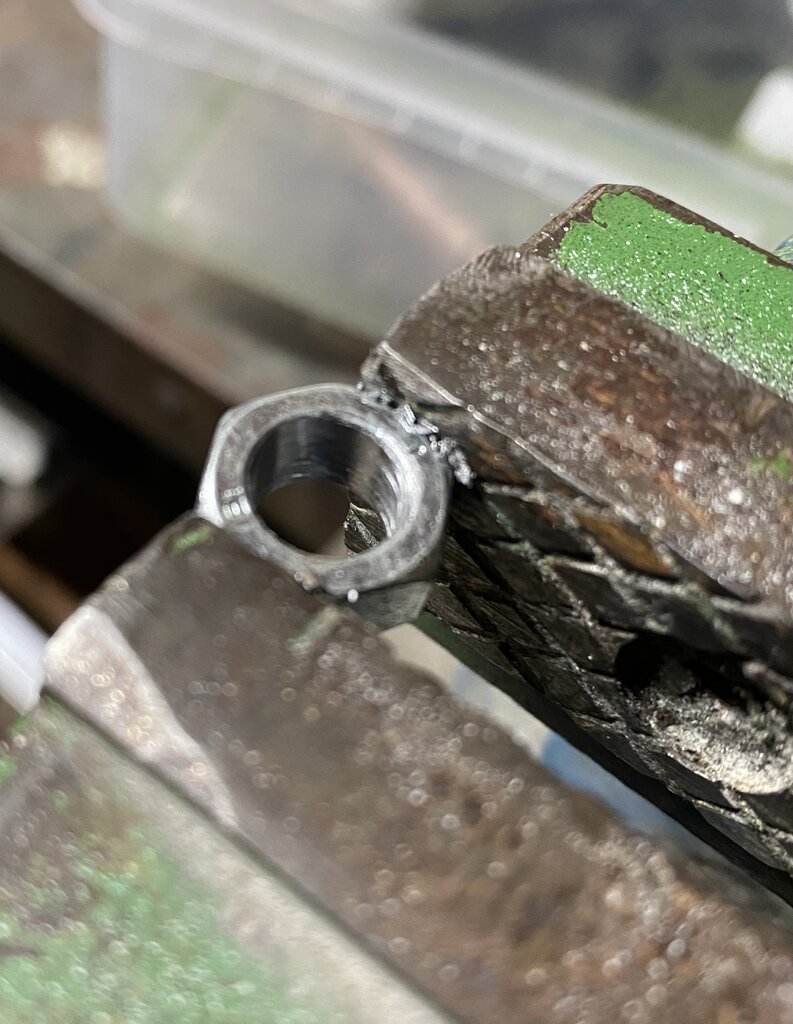

View attachment 20165Number 1 tap straight through and job done. View attachment 20166View attachment 20167

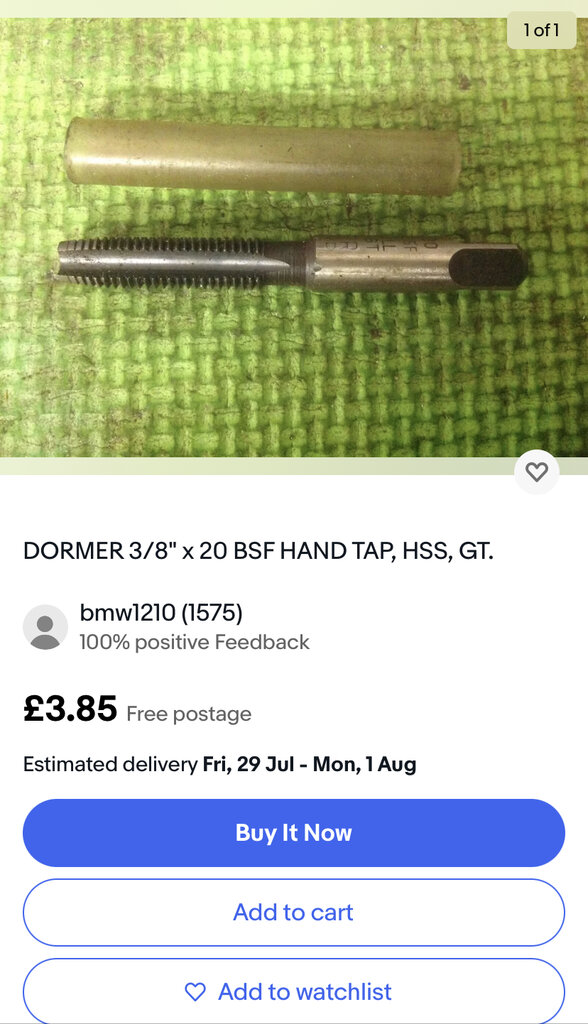

As your only cutting brass, a used cheap tool steel tap is gonna be fine. Like so…View attachment 20168
Click to expand...
Right... I,ll have a go at getting my head round that.. first thing I need is a vice 😅, u look all set up in a workshop there Richard, so there won't be anywhere I can just buy an adapter by sound of it

Warren Mcquillan said:
Right... I,ll have a go at getting my head round that.. first thing I need is a vice 😅, u look all set up in a workshop there Richard, so there won't be anywhere I can just buy an adapter by sound of it
Click to expand...
You only need a vice if your cutting a tiny nut.
You’ll be able to hold the pole while you drill and tap it. It’s a soft brass thread so should be easy. (Disclaimer… I am not responsible if you balls it up 🤣)

Richard Isaacs said:
It’s just about taking your time Bill. There is absolutely nothing spectacular about what I’ve shown there. 👍🏻
Click to expand...
Glad you’ve got confidence in me Rich. I’m really king of the cock ups….my family will vouch 🤣🤣🤣

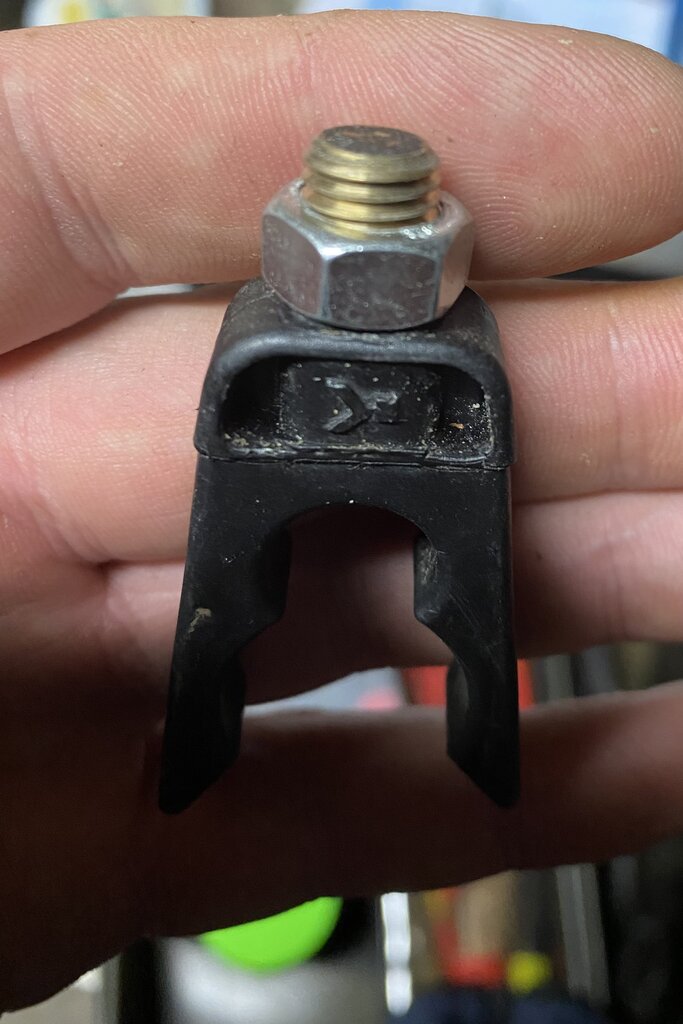

In the first picture the threaded section looks like a brass insert. Would there still be enough “meat” left after drilling out and tapping the 3/8”thread?

John Newman said:
In the first picture the threaded section looks like a brass insert. Would there still be enough “meat” left after drilling out and tapping the 3/8”thread?
Click to expand...
i did think about that but it looks ok
You are opening up the hole by 1.2mm on the diameter. There’s a chunk more than 0.6mm of wall there so it should be ok but it’s worth checking definitely.

My fear would be the heat of drilling effect
If that insert is just glued in or something daft and the drilling was to pull it out.

You never really know how something like that is going to go but there’s ways around it if the guy doing the job takes his time and care.

I know plenty of people that could make one and I could of done it easily when I had my lathe but I don’t know anyone that is prepared to start cutting threads and re clocking parts without at least 30-40 quid being on the cards.
